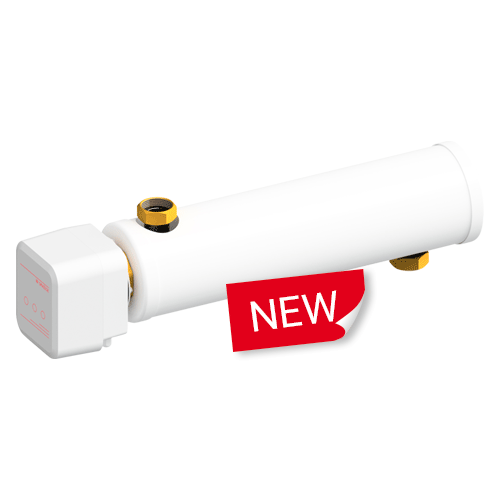

TJ 2" HP is designed as a bivalent source of heating water, e.g. for a heat pump. The HP model is with mechanical control, the EHP model is with electronic control.
The maximum power of the body is 9 kW. Heating water is heated in the heater body, and the assembly includes only a safety thermostat. The body TJ 2" HP (EHP) should be controlled by external regulation of e.g. a heat pump. The power can be regulated by connecting individual phases. During operation, a minimum flow rate corresponding to the connected power must be ensured.
See the documentation for details.
| Type | TJ 2“ HP 6 kW | TJ 2“ HP 9 kW | TJ 2“ EHP 6 kW | TJ 2“ EHP 9 kW |
| Lenght | 646 mm | |||
| Inlet and outlet thread | 5/4“ inner | |||
| Pressure valve thread | 1“ outer | |||
| Output | 2-6 kW | 3 - 9 kW | 2-6 kW | 3 - 9 kW |
| Connection | 3 PE-N AC 3x230 V/50 Hz | |||
| Electr. Protection | IP44 | |||
